Industrial Multi-Layer Continuous Drying & Roasting Ovens

High-performance standalone drying and roasting cores engineered for continuous food and feed processing. Featuring multi-fuel compatibility and uniform recirculating hot-air convection.

Advanced Continuous Drying & Roasting Systems

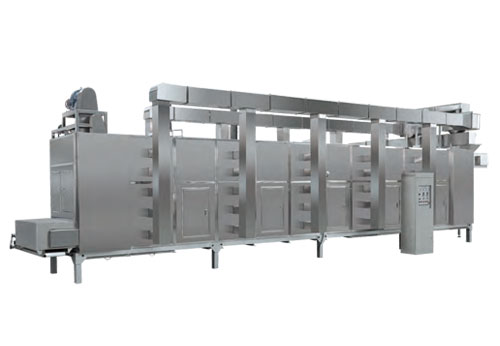

ZHKX-RF series multi-layer continuous gas and diesel fired belt conveyor drying oven.

ZHKX-RF Series Gas/Diesel Dryer

High-efficiency continuous belt dryer powered by natural gas or diesel fuel. Utilizes premium Italian Baltur burners for rapid heating and uniform, cost-effective convective air circulation.

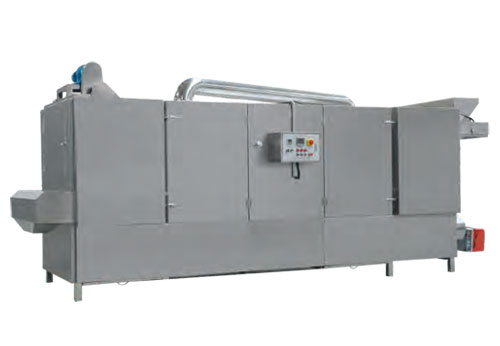

zhuoheng zhkx vy 500 five layer fuel oil oven

ZHKX-VY-500 Five-Layer Fuel Oil Oven

An economical five-layer continuous belt oven utilizing clean light oil or LPG heating. Delivers exceptionally low energy costs with complete fuel combustion and minimal carbon footprint.

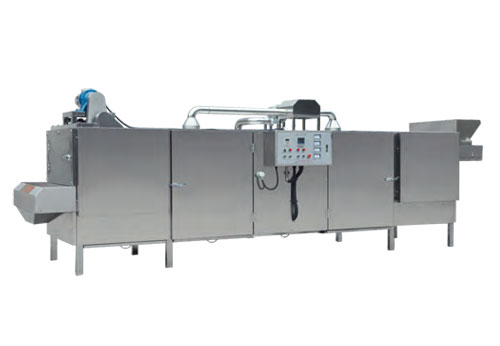

zhuoheng zhkx vd 500 five layer electricity oven

ZHKX-VD-500 Five-Layer Electric Oven

A highly versatile five-tier electric conveyor oven offering smooth double-pitch roller chain drives. Configured with a stable 63kW heating array for compact, reliable commercial food operations.

ZHKX-VD-900 high-capacity continuous 5-layer electric hot air circulation belt dryer.

ZHKX-VD-900 Five-Layer Electric Oven

A heavy-duty five-layer electric belt dryer delivering high-volume drying performance. Features 120kW zoned electric heating and high-efficiency convective recirculation fans for homogeneous batch-to-batch moisture reduction.

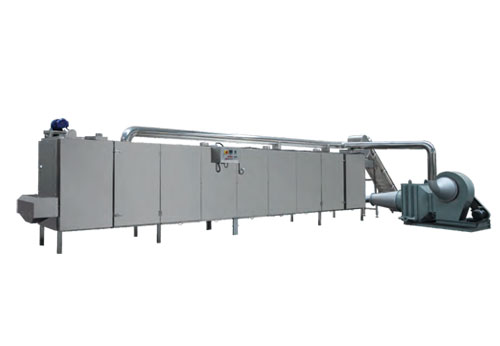

ZHKX-VQ-900 steam heated continuous 5-layer food belt conveyor dryer.

ZHKX-VQ-900 Five-Layer Steam Oven

Utilizing existing factory steam pipelines to heat recirculating air. Minimizes electrical consumption down to 11.5kW while gently dehydrating delicate formulations with exceptional thermal control efficiency.

zhuoheng gwl500 d high temperature air popping oven

GWL500-D High-Temperature Oven

An advanced roasting platform delivering convective temperatures up to 270°C. Engineered with a single-layer stainless steel chainplate transport, triggering instant steam flashing to expand corn flakes.

zhuoheng zhkx v vertical lifting conveyor oven

ZHKX-V Vertical Lifting Oven

An innovative vertical lifting belt oven engineered for space-constrained workshop layouts. Features continuous mechanical hoisting combined with gentle multi-layer hot-air circulation to optimize facility space utilization.

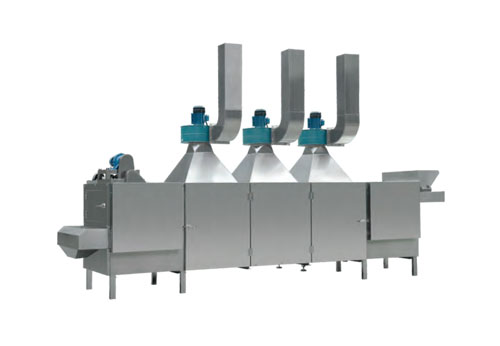

ZH-I industrial continuous negative pressure dehumidifier and vapor extractor.

ZH-I Negative Pressure Dehumidifier

A high-volume negative pressure dehumidification station. Utilizes high-flow convective extraction fan clusters to rapidly exhaust moisture-laden air directly from dryer chambers to prevent internal product condensation.

Technical Specifications & Production Capacities
Zhuoheng ZHKX Heavy-Duty Multi-Layer Continuous Ovens & Specialty Roasters (Full 12 Specifications)
Platform Model Design Capacity System Heat Source Power / Fuel Consumption Dimension (L*W*H)
I. ZHKX-RF Series Heavy-Duty Gas/Diesel Conveyor Dryers
ZHKX-RF-100 100 – 300 kg/h Natural Gas / Diesel 22.00 kW
Fuel: 6 ~ 20.5 m³/h		 6300 × 2250 × 4000 mm
ZHKX-RF-200 200 – 500 kg/h Natural Gas / Diesel 26.00 kW
Fuel: 6 ~ 20.5 m³/h		 9300 × 2250 × 4000 mm
ZHKX-RF-300 300 – 700 kg/h Natural Gas / Diesel 30.00 kW
Fuel: 6 ~ 20.5 m³/h		 13300 × 2250 × 4000 mm
ZHKX-RF-400 400 – 1200 kg/h Natural Gas / Diesel 35.00 kW
Fuel: 6 ~ 20.5 m³/h		 16300 × 2250 × 4000 mm
II. Standard Five-Layer Recirculating Conveyor Ovens
ZHKX-VD-300 120 – 150 kg/h Electric Heat Tube 41.00 kW 6100 × 1400 × 1800 mm
ZHKX-VD-500 180 – 240 kg/h Electric Heat Tube 63.00 kW 6100 × 1400 × 2000 mm
ZHKX-VY-500 180 – 240 kg/h Light Fuel Oil / LPG Motor: 0.75 kW
Fuel: 6 ~ 20.5 m³/h		 6100 × 1950 × 2600 mm
ZHKX-VD-900 400 – 600 kg/h Electric Heat Tube 120.00 kW 10000 × 1400 × 2010 mm
ZHKX-VQ-900 400 – 600 kg/h Factory Utility Steam 11.50 kW
Steam: 300 ~ 500 kg/h		 10000 × 1400 × 2010 mm
III. Specialty Roasters & Dehumidification Systems
GWL500-D High-Temp 300 – 500 kg/h High-Temp Electric 110.00 kW
Temp: 180 ~ 270℃		 4650 × 1300 × 2250 mm
ZHKX-V Lifting Oven 200 – 400 kg/h Electric Heat Tube 78.00 kW 7100 × 1400 × 2010 mm
ZH-I Dehumidifier 1000 – 1200 kg/h High-Flow Air Fan 5.25 kW 6100 × 1400 × 3420 mm

Your Trusted Partner in Extrusion Technology​

National High-Tech Enterprise & ISO 9001 Certified Source Factory

Since 2010, Jinan Zhuoheng Extrusion Machinery has specialized in the R&D and precision manufacturing of twin-screw extrusion systems. Eliminating middlemen, we deliver 100% factory-direct pricing, custom formula support, and complete turnkey engineering services worldwide.
  • 15+ Years — Extrusion R&D Experience
  • 60+ Countries — Global Installations
  • 20+ Patents — Proprietary Technologies
International certifications of Zhuoheng Extrusion Machinery including SGS ISO 9001, Bureau Veritas (BV), Supplier Assessment Report, and CE Mark.

Frequently Asked Questions

Everything you need to know about our standalone drying & roasting systems

For standard electric multi-layer ovens like the ZHKX-VD-500 and ZHKX-VD-300, our factory delivery lead-time is 15 to 20 working days. For high-capacity multi-fuel systems, such as the ZHKX-RF-400 gas oven or customized steam ovens, the timeline is approximately 30 to 45 working days to ensure comprehensive thermal cycle testing.
Yes, absolutely. All Zhuoheng ovens feature modular mechanical linkages, standardized inlet conveyors, and independent VFD speed-adjusted control panels. This allows seamless speed synchronization with any existing third-party extruders or packaging systems with minimal plant downtime.
It depends on your local energy costs. Electric heating (ZHKX-VD series) offers zero emissions and precise zone temperature profiling but is best where electricity is cheap. Gas/diesel heating (ZHKX-RF & ZHKX-VY) provides fast temperature rise and is highly economical in most zones. Steam heating (ZHKX-VQ) reduces electrical consumption down to 11.5kW by utilizing your pre-existing factory steam boiler.
Our thermal engineering utilizes convective recirculating fans to distribute heat equally throughout the multi-tier chambers. This eliminates localized hot spots and prevents moisture condensation. Combined with precision PID controllers that monitor temperature variables to keep fluctuations within ±1°C, products dry uniformly from core to crust.
Yes. Every multi-layer oven is equipped with sliding stainless steel bottom drawers beneath the mesh conveyors. Falling crumbs and fines are caught directly in these trays. Operators can easily pull them out to sweep away residues, completely preventing product build-up, mold growth, or potential fire hazards under heat tubes.
Our mesh belts are made of food-grade SUS304 stainless steel, and the double-pitch roller chains are heat-treated alloy steel. Under normal continuous 24/7 operating conditions with proper routine lubrication, they have a wear life of 5 to 8 years. As an OEM source factory, we maintain a complete wear-parts inventory globally for immediate shipment.
